Yale | SKU: 247D002075

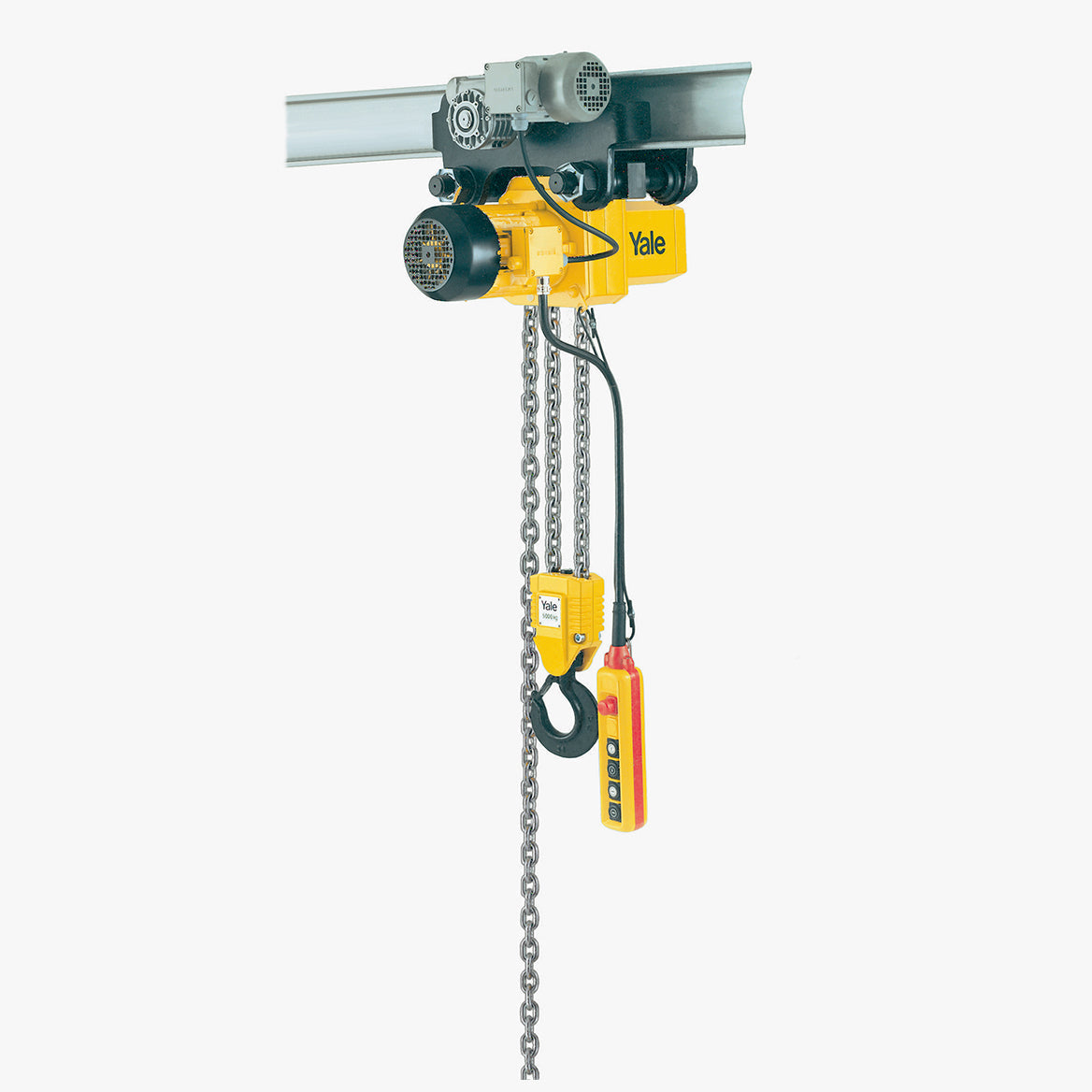

Yale CPE/CPEF Electric Chain Hoist with Push Travel Trolley

£4,687.19

£3,905.99 EX. VAT

Tax included Shipping calculated at checkout.

Capacity

Hoisting Speed

Delivery Information

Free delivery to UK Mainland

Delivery: 3 to 5 Working Days

Description

The CPE/CPEF Electric Chain Hoist with Push Travel Trolley is a high-performance lifting solution designed for industrial workloads between 1,600kg and 2,500kg. This configuration combines the robust lifting capability of the CPE/CPEF hoist series with the smooth, manual movement of a push travel trolley, enabling reliable horizontal load handling on a beam while maintaining low maintenance requirements and exceptional durability.

Built for manufacturing facilities, workshops, process plants, and construction environments, this hoist+trolley package ensures efficient, safe, and precise movement of suspended loads.

Available Models CPE / CPEF

CPE Models (Single Speed)

CPE 16-8 — 1600kg
CPE 20-8 — 2000kg
CPE 25-5 — 2500kg

CPEF Models (Dual Speed Main & Fine Lift)

CPEF 16-8 — 1600kg
CPEF 20-8 — 2000kg
CPEF 25-5 — 2500kg

Key Features

Capacities from 1,600 kg to 10,000 kg (1–4 chain falls)
Single-speed (CPE) or Dual-speed (CPEF) lifting
FEM classifications 1Am / M4 and 1Bm / M3 for long service life
Powerful squirrel-cage motor with spring-pressure brake
Precision-machined 5-pocket load sheave for smooth chain travel
Lifetime-lubricated gearbox for quiet, reliable operation
High-strength, case-hardened 11×31 DAT load chain
42V low-voltage pendant control for operator safety
Suspension hook mounting allows flexible installations

Push Travel Trolley Features

Designed for manual push travel—smooth movement with minimal effort
Compatible with I-beams and profile beams (INP, IPE, IPB, etc.)
Adjustable to track beams using precise flange-width settings
Available for:
1,600–5,000 kg beam range A (98–180 mm)
1,600–7,000 kg beam range B (180–300 mm)
7,500–10,000 kg beam range B (125–310 mm)
Maintain 2 mm wheel clearance on both sides for safe running
Silent, high-strength trolley wheels with sealed bearings
Supplied pre-assembled for fast installation

Downloads

Data Sheet

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

View our Privacy Policy

Important Safety Information:

Lifting equipment must be selected, installed, inspected, and used in accordance with relevant legislation, including LOLER and PUWER where applicable. Regular inspection by a competent person is required.

Frequently Asked Questions

Can the push trolley handle curved beams?

The trolley is designed for straight beams only. Minimum curve radius requirements are provided per capacity.

Does the hoist include overload protection?

Yes. All CPE/CPEF models are equipped with an overload protection device set at approx. 125% of rated capacity.

What beam sizes does the trolley fit?

Depending on the model, the trolley fits flange widths 98–180 mm, 180–300 mm, or 125–310 mm with a maximum flange thickness of 27–40 mm.
