Yale  |  SKU: 247D001780

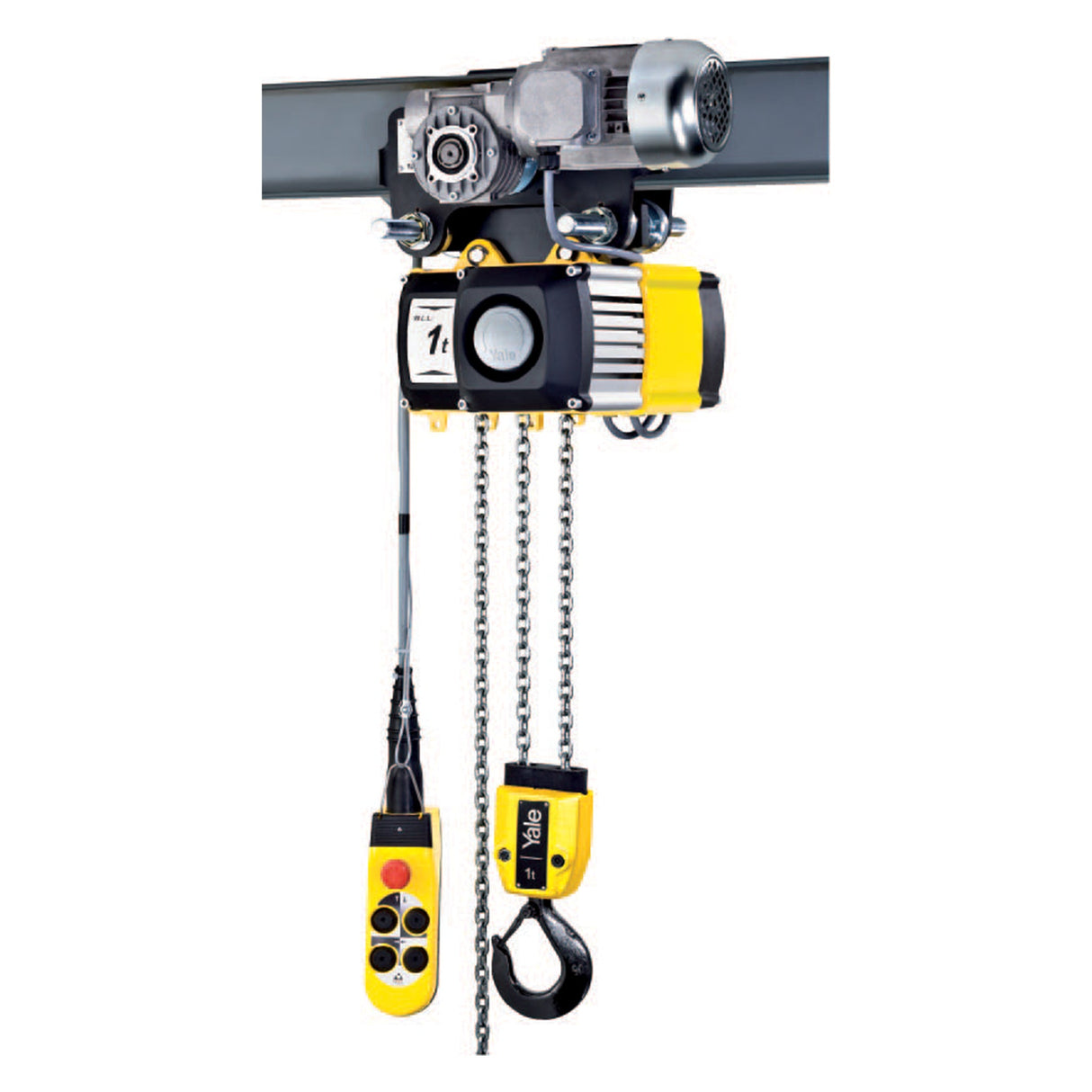

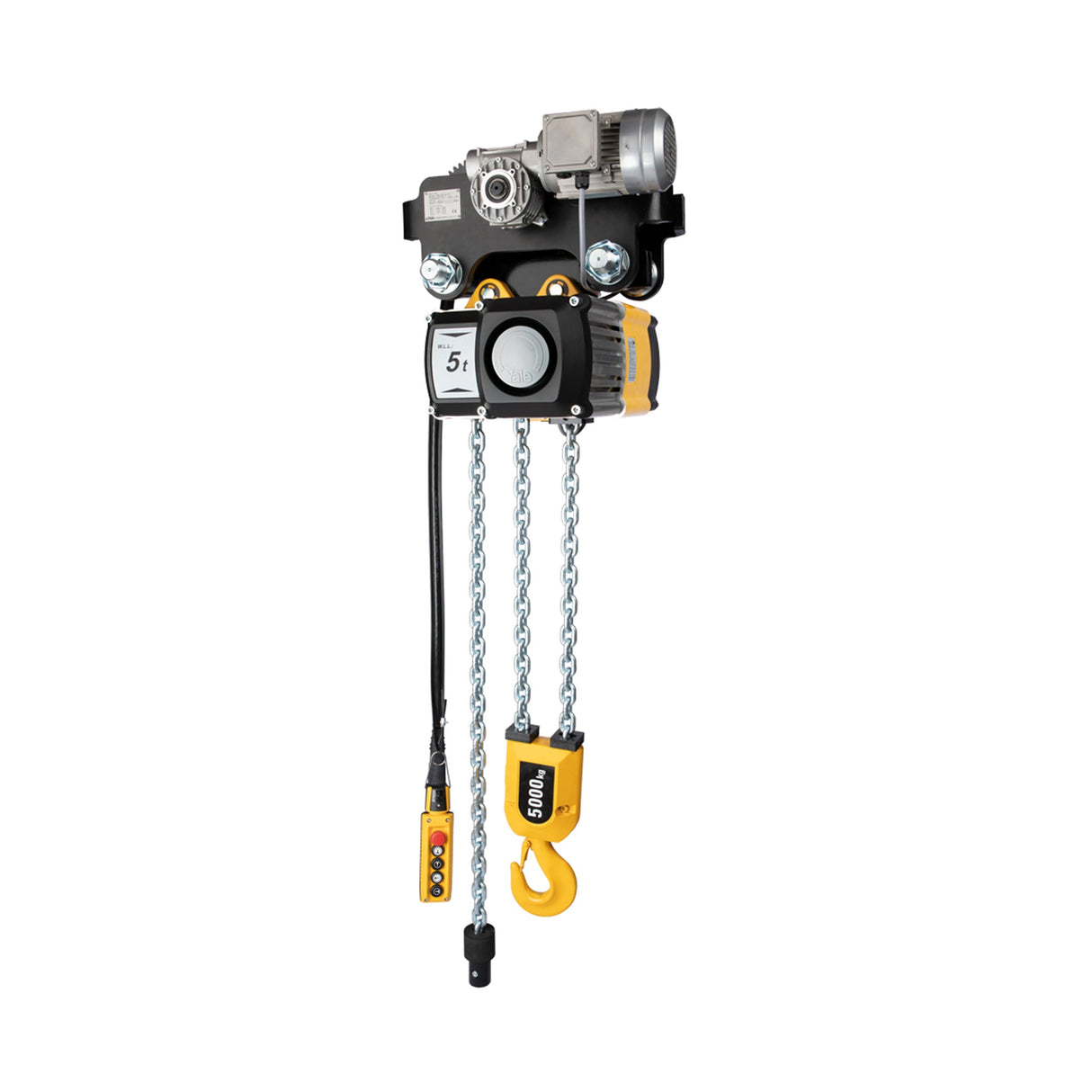

Yale CPE/CPEF Electric Chain Hoist with Electric Trolley VTE-A Single Speed

£2,206.20
£1,838.50 EX. VAT
Tax included Shipping calculated at checkout.

Delivery Information

Free delivery to UK Mainland

Delivery: 3 to 5 Working Days

Description

The Yale CPV/CPVF Electric Chain Hoist with Electric Trolley VTE-A (Single Traversing Speed 18m/min) combines strength, reliability, and precision for heavy-duty industrial lifting applications.

Engineered with German-built quality, this system integrates the proven Yale CPV/CPVF chain hoist with a VTE-A electric travel trolley, ensuring smooth, consistent load movement and dependable performance.

With a single traversing speed of 18 m/min, this model is designed for efficient material handling across workshops, factories, and maintenance areas. Its robust steel housing, 48V control system, and electromagnetic disc brake deliver both safety and precision in daily use. Ideal for production lines and repetitive lifting tasks where consistent speed and durability are essential.

Why You Should Buy

  • Reliable Performance: High-quality Yale engineering ensures long-term, low-maintenance operation.
  • Consistent Travel Speed: Single-speed 18 m/min trolley for smooth, efficient load movement.
  • Safe & Efficient: Equipped with 48V control voltage and thermal overload protection.
  • Heavy-Duty Build: Galvanised Grade 80 load chain and reinforced steel body for industrial use.
  • Precision Control: Compact design with pendant control for safe and accurate operation.



Variations Details Table:

Yale CPV/CPVF Electric chain hoist with electric trolley VTE-A  Single trav. Speed 18m/min
Variation Code Model Description Capacity (kg) Chain Falls Lifting Speed (m/min) Motor Rating (kW)
CPVF 2-8 Electric chain hoist 250 1 8 / 2 0.37 / 0.09
CPVF 5-4 Electric chain hoist 500 2 4 / 1 0.37 / 0.09
CPVF 5-8 Electric chain hoist 500 1 8 / 2 0.75 / 0.18
CPVF 10-4 Electric chain hoist 1000 2 4 / 1 0.75 / 0.18
CPVF 10-8 Electric chain hoist 1000 1 8 / 2 1.5 / 0.37
CPVF 20-4 Electric chain hoist 2000 2 4 / 1 1.5 / 0.37
CPVF 25-8 Electric chain hoist 2500 1 8 / 2 3.6 / 0.9
CPVF 50-4 Electric chain hoist 5000 2 4 / 1 3.6 / 0.9



Dimensions Table:

Dimensions – Yale CPVF Electric Chain Hoists (VTEF-A Single trav. Speed)
Model A3 (mm) A5 (mm) b (mm) H3 (mm) L (VTP/VTG) (mm) L2 (VTE) (mm) P (mm) tmax. (mm)
CPVF 2-8 199 365 A = 58–180 / B = 180–300 113 310 255 171 12
CPVF 5-4 199 401 A = 58–180 / B = 180–300 113 310 255 171 12
CPVF 5-8 228 389 A = 58–180 / B = 180–300 129 310 255 171 19
CPVF 10-4 228 462 A = 58–180 / B = 180–300 129 310 255 171 19
CPVF 10-8 263 460 A = 58–180 / B = 180–300 129 360 255 180 19
CPVF 20-4 263 558 A = 58–180 / B = 180–300 129 360 263 180 19
CPVF 25-8 339 648 A = 98–180 / B = 180–300 178 525 292 172 27
CPVF 50-4 339 738 A = 98–180 / B = 180–300 178 525 292 172 27



Key Features
  • Model: Yale CPV/CPVF with VTE-A Electric Trolley
  • Trolley Type: Electric travel trolley (single speed)
  • Traversing Speed: 18 m/min
  • Lifting Speeds: Dual-speed options (e.g. 8/2 or 4/1 m/min, depending on model)
  • Load Capacity: 125 kg – 5,000 kg (model dependent)
  • Control Voltage: 48V low-voltage control
  • Power Supply: 400V / 3-phase / 50Hz
  • Chain Type: Galvanised Grade 80 high-tensile steel
  • Motor Protection: IP55-rated hoist and trolley motors with thermal overload
  • Brake System: Electromagnetic disc brake for instant stopping
  • Standard Lift Height: 3 m (custom lengths available)
  • Duty Rating: 50% ED, FEM 2m (ISO M5) classification
  • Applications: Manufacturing | Maintenance | Assembly | Warehousing

Downloads

Data Sheet

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

View our Privacy Policy

Important Safety Information:

Lifting equipment must be selected, installed, inspected, and used in accordance with relevant legislation, including LOLER and PUWER where applicable. Regular inspection by a competent person is required.

Frequently Asked Questions

What type of control system does it use?

The hoist is operated via a 48V pendant control for safe, low-voltage operation.

Can it be customised for a longer lifting height or beam width?

Yes — custom configurations and longer lift heights are available upon request.

Is the trolley motor protected from dust and moisture?

Yes — the hoist and trolley motors are IP55-rated, ensuring protection against workshop conditions.
