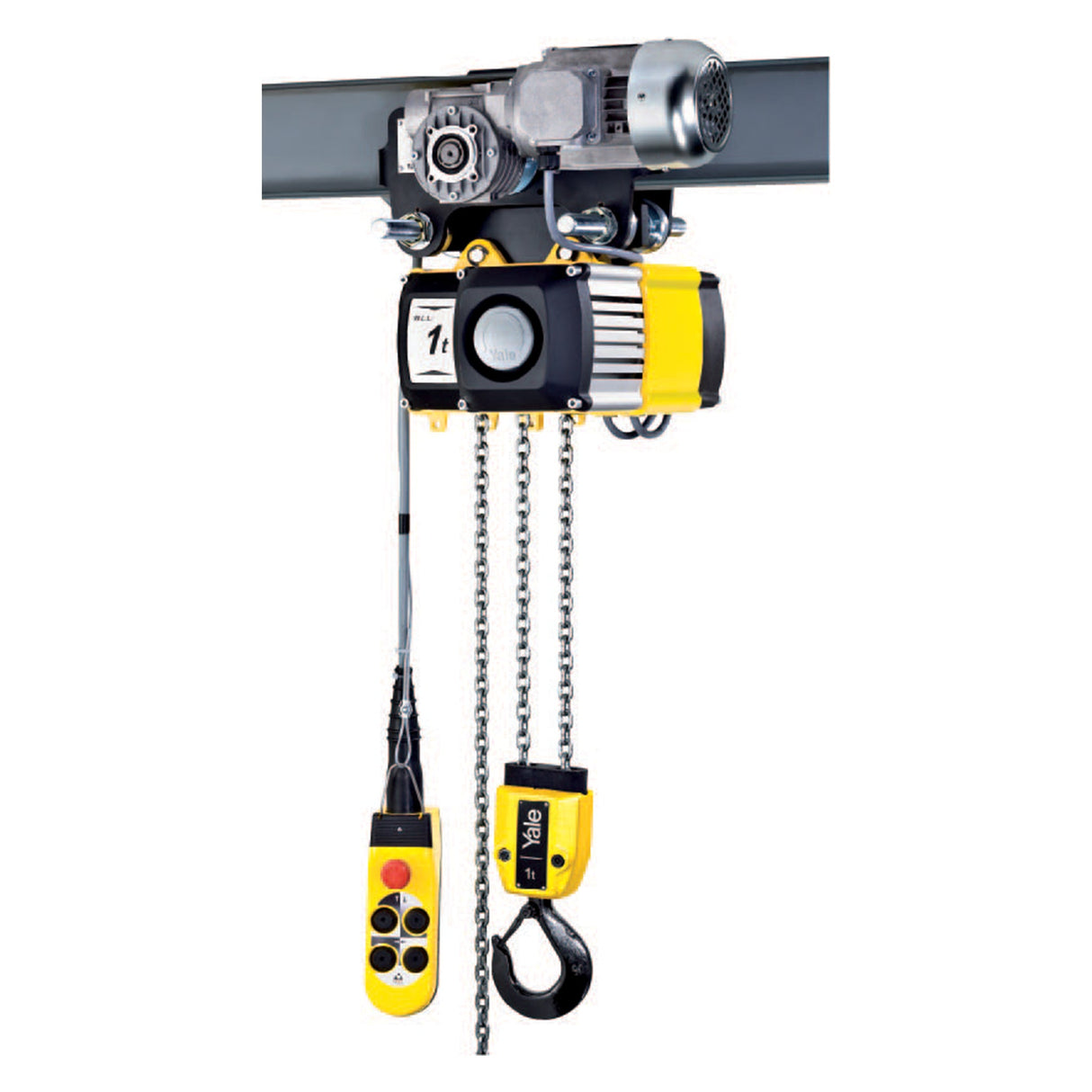

Yale CPE/CPEF Electric Chain Hoist with Electric Trolley VTE-A Dual Speed
Yale CPE/CPEF Electric Chain Hoist with Electric Trolley VTE-A Dual Speed - 250 KG / Dual Speed 8 & 2 m/min | CPVF 2-8 is backordered and will ship as soon as it is back in stock.
Yale CPE/CPEF Electric Chain Hoist with Electric Trolley VTE-A Dual...
Yale CPE/CPEF Electric Chain Hoist with Electric Trolley VTE-A Dual Speed - 250 KG / Dual Speed 8 & 2 m/min | CPVF 2-8 is backordered and will ship as soon as it is back in stock.
Description
Description
The Yale® CPV/CPVF Electric Chain Hoist with Electric Trolley VTEF-A is a professional lifting solution built for precision, durability, and reliability in demanding industrial environments. Combining Yale’s proven CPV/CPVF chain hoist with the VTEF-A dual-speed electric trolley, it provides exceptional control and smooth, efficient load handling for continuous operation.
Engineered with high-tensile steel load chains, low-voltage (48V) control, and an ergonomic pendant, this system ensures operator comfort, maximum safety, and smooth performance during all lifting and traversing operations. The dual-speed motorized trolley allows for accurate positioning and effortless movement of suspended loads—ideal for use in production lines, assembly areas, warehouses, and maintenance facilities.
Available in multiple lifting capacities ranging from 250 kg to 5000 kg, the CPV/CPVF series caters to both light-duty and heavy industrial lifting applications, ensuring flexibility and consistent performance across diverse site requirements.
Why You Should Buy
- Dual-Speed Control: Provides two lifting and travelling speeds for precise and safe load handling.
- Integrated System: Seamlessly combines CPV/CPVF hoist with VTEF-A trolley for synchronized performance.
- Durable Engineering: Constructed from high-grade steel components for long-lasting industrial use.
- Smooth Operation: The electric trolley ensures steady and controlled traversing even under heavy loads.
- Certified Safety: Designed and tested to EN 14492-2 standards, ensuring full compliance for professional lifting.
Variations Details Table:
| Product Variations – Yale® CPVF Electric Chain Hoist with Electric Trolley (VTEF-A Dual Traversing Speeds) | |||||
|---|---|---|---|---|---|
| Variation Code | Model Description | Capacity (kg) | Chain Falls | Lifting Speed (m/min) | Motor Rating (kW) |
| CPVF 2-8 | Electric chain hoist | 250 | 1 | 8 / 2 | 0.37 / 0.09 |
| CPVF 5-4 | Electric chain hoist | 500 | 2 | 4 / 1 | 0.37 / 0.09 |
| CPVF 5-8 | Electric chain hoist | 500 | 1 | 8 / 2 | 0.75 / 0.18 |
| CPVF 10-4 | Electric chain hoist | 1000 | 2 | 4 / 1 | 0.75 / 0.18 |
| CPVF 10-8 | Electric chain hoist | 1000 | 1 | 8 / 2 | 1.5 / 0.37 |
| CPVF 20-4 | Electric chain hoist | 2000 | 2 | 4 / 1 | 1.5 / 0.37 |
| CPVF 25-8 | Electric chain hoist | 2500 | 1 | 8 / 2 | 3.6 / 0.9 |
| CPVF 50-4 | Electric chain hoist | 5000 | 2 | 4 / 1 | 3.6 / 0.9 |
Dimensions Table:
| Dimensions – Yale CPVF Electric Chain Hoists (VTEF-A Dual Traversing Speeds) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | A3 (mm) | A5 (mm) | b (mm) | H3 (mm) | L (VTP/VTG) (mm) | L2 (VTE) (mm) | P (mm) | tmax. (mm) |
| CPVF 2-8 | 199 | 365 | A = 58–180 / B = 180–300 | 113 | 310 | 255 | 171 | 12 |
| CPVF 5-4 | 199 | 401 | A = 58–180 / B = 180–300 | 113 | 310 | 255 | 171 | 12 |
| CPVF 5-8 | 228 | 389 | A = 58–180 / B = 180–300 | 129 | 310 | 255 | 171 | 19 |
| CPVF 10-4 | 228 | 462 | A = 58–180 / B = 180–300 | 129 | 310 | 255 | 171 | 19 |
| CPVF 10-8 | 263 | 460 | A = 58–180 / B = 180–300 | 129 | 360 | 255 | 180 | 19 |
| CPVF 20-4 | 263 | 558 | A = 58–180 / B = 180–300 | 129 | 360 | 263 | 180 | 19 |
| CPVF 25-8 | 339 | 648 | A = 98–180 / B = 180–300 | 178 | 525 | 292 | 172 | 27 |
| CPVF 50-4 | 339 | 738 | A = 98–180 / B = 180–300 | 178 | 525 | 292 | 172 | 27 |
Overview
The Yale® CPV/CPVF Electric Chain Hoist with VTEF-A Electric Trolley delivers unmatched strength, precision, and safety for professional lifting tasks. Its robust design, efficient dual-speed control, and wide capacity range make it a dependable choice for industrial production, assembly, and maintenance operations where consistent performance and operator confidence are essential.
Key Features
Key Features
Downloads
Downloads
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
View our Privacy Policy
Important Safety Information:
Lifting equipment must be selected, installed, inspected, and used in accordance with relevant legislation, including LOLER and PUWER where applicable. Regular inspection by a competent person is required.
