Yale | SKU: 247D001875

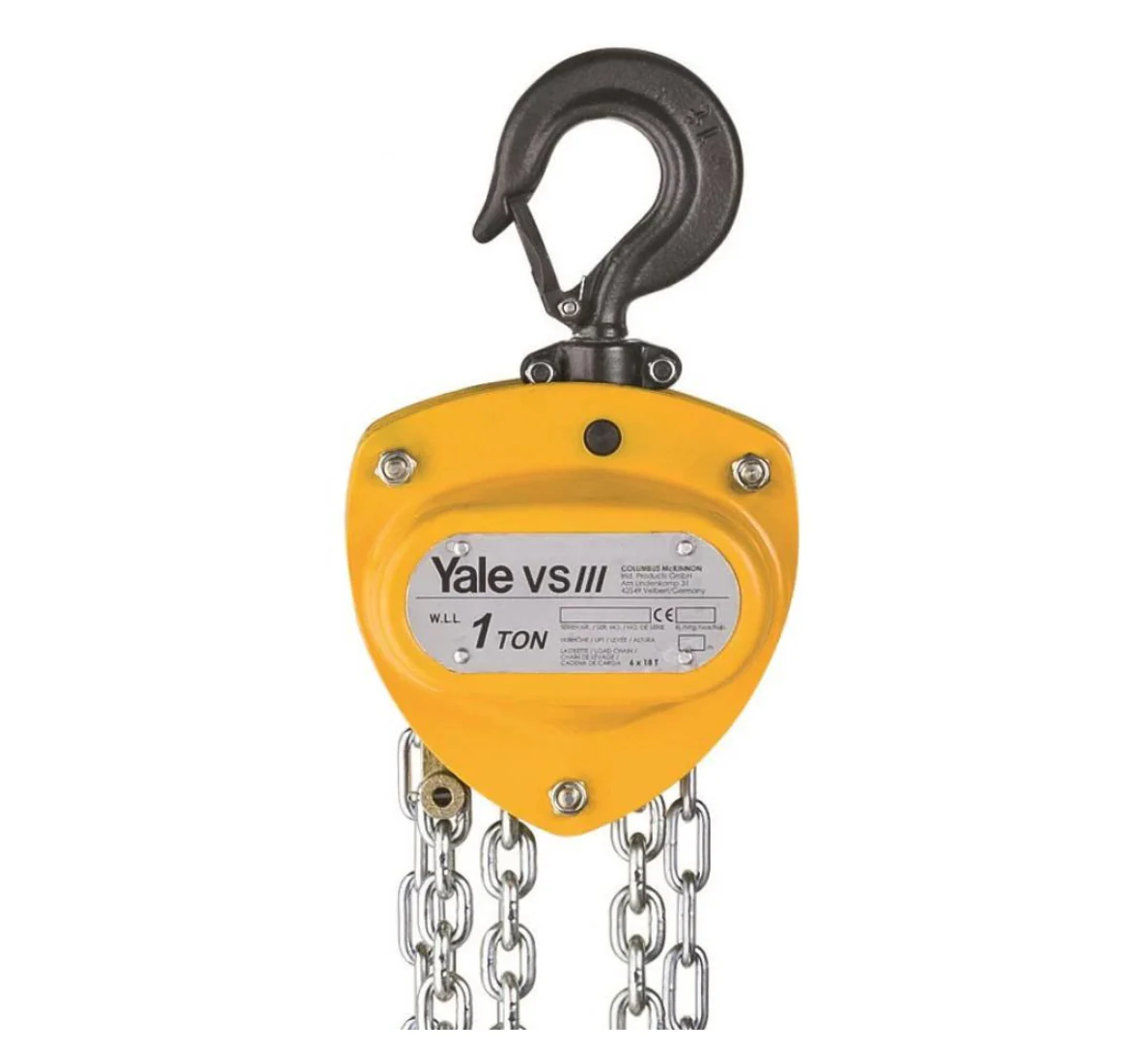

Yale VSIII Hand Chain Hoists

£99.49

£82.90 EX. VAT

Tax included Shipping calculated at checkout.

Delivery Information

Delivery: 3 to 5 Working Days

Description

The Yale VSIII Hand Chain Hoist is a high-performance lifting solution engineered for maximum reliability, durability, and ease of operation. Designed for demanding industrial environments, this hoist combines a compact, extremely low headroom design with precision-machined components to deliver smooth, efficient, and safe lifting.

Built with robust stamped steel housing and high-quality bearings, the VSIII ensures long service life and consistent performance. Its advanced hand chain guide system reduces jamming, while load chain sheaves and gearbox components are optimized for low-effort operation. Available in capacities from 250kg to 50,000kg, the VSIII series is suitable for workshops, factories, heavy industry, and specialized applications.

Available Capacities (Full Range)

Standard VSIII Models (250–5000kg):

250kg
500kg
1000kg
1500kg
2000kg (single or double fall)
3000kg (single or double fall)
5000kg (double fall)

Series Extension Heavy-Duty Models (10–50 tonne):

10,000kg (4 chain falls)

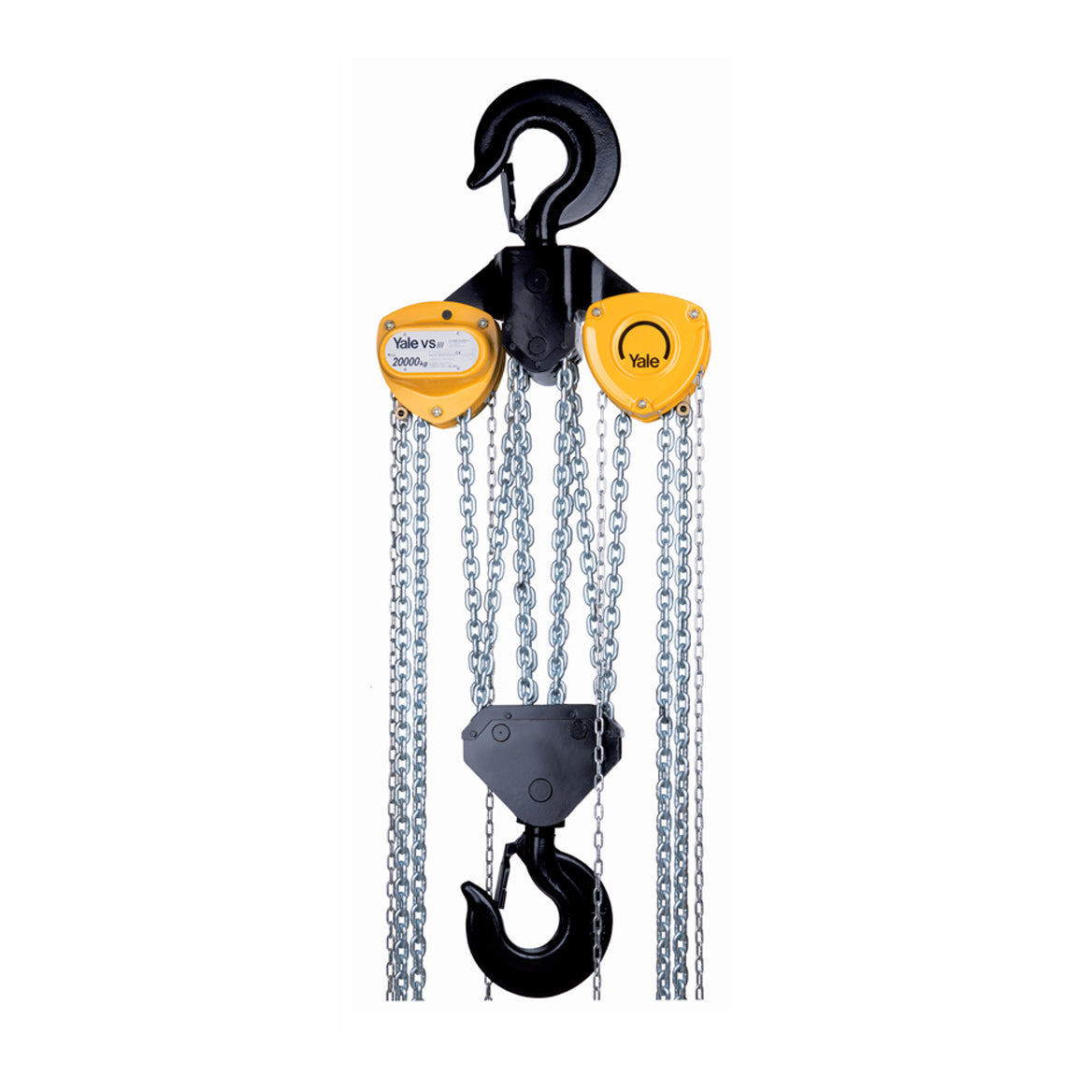

20,000kg (8 chain falls)
30,000kg (12 chain falls)
50,000kg (18 chain falls)

Technical Data VS/III

Model	Art.-No.	Capacity in kg / Number of chain falls	Chain dimensions (d × p in mm / design)	Lift per 1 m hand chain overhaul (mm)	Handle pull at WLL (daN)	Weight at standard lift (3 m) (kg)
VS/III 0,25/1	N04200123	250/1	4 × 12 - T	50	20	4.9
VS/III 0,5/1	N04200124	500/1	5 × 15 - T	26	21	9.0
VS/III 1,0/1	N04200125	1000/1	6 × 18 - T	24	24	11.5
VS/III 1,5/1	N04200134	1500/1	8 × 24 - T	17	30	17.5
VS/III 2,0/1	N04200126	2000/1	8 × 24 - T	19	32	19.0
VS/III 2,0/2	N04200127	2000/2	6 × 18 - T	15	29	17.3
VS/III 3,0/1	N04200128	3000/1	10 × 30 - T	12	40	31.0
VS/III 3,0/2	N04200129	3000/2	8 × 24 - T	10	37	27.0
VS/III 5,0/2	N04200130	5000/2	10 × 30 - T	8	41	43.0
VS/III 10/4	192039383	10000/4	10 × 30 - T	2.84	37	78.5
VS/III 20/8	192039384	20000/8	10 × 30 - T	1.42	44.5	197
VS/III 30/12	192039385	30000/12	10 × 30 - T	0.83	46.3	268
VS/III 50/18	192039386	50000/18	10 × 30 - T	0.56	53.6	540

Dimensions VS/III

Model	VS/III 0,25/1	VS/III 0,5/1	VS/III 1,0/1	VS/III 1,5/1	VS/III 2,0/1	VS/III 2,0/2	VS/III 3,0/1	VS/III 3,0/2	VS/III 5,0/2	VS/III 10/4	VS/III 20/8	VS/III 30/12	VS/III 50/18
A min., mm	290	350	380	450	460	490	570	580	700	860	950	1112	1700
B, mm	12	21	27	33	37	46	46	46	56	63	90	90	165
C, mm	26	28	32	37	41	41	44	44	50	65	86	85	135
D, mm	11	16	19	22	27	31	31	37	47	69	67	108	—
E, mm	118	145	158	180	205	170	240	220	250	463	860	704	776
F, mm	113	140	155	175	180	155	210	175	190	104	200	410	627
G, mm	65	80	87	85	94	87	110	91	95	55	100	225	314
H, mm	48	60	68	90	86	68	100	81	95	50	100	186	314
K, mm	190	240	270	300	320	285	370	340	410	448	508	528	656

Why You Should Buy

The Yale VSIII Hand Chain Hoist delivers dependable performance backed by decades of engineering experience. With its ultra-low headroom design, corrosion-protected components, and exceptionally smooth lifting action, it is ideal for industries that require safe, precise, and reliable vertical lifting. Available all the way up to 50 tonne, the VSIII covers everything from everyday workshop tasks to the heaviest industrial lifting requirements. Its high-quality bearings, precision machining, and rugged build make it a long-term investment that lowers operational effort and increases productivity in any environment.

Key Features

Extremely Low Headroom: Compact dimensions allow maximum use of available lifting height.
Fully Enclosed Stamped Steel Housing: Protects internal components and supports indoor and outdoor use.
Improved Hand Chain Guide: Prevents jamming and ensures smooth operation of the hand chain.
High-Quality Bearings: Bearings on the gearbox, side plates, and load chain sheave reduce friction and prolong service life.
Precision-Machined Guide Rollers: Ensure smooth running of the load chain and consistent lifting performance.
Corrosion-Protected Components: Zinc-plated load chain, brake parts, and guide rollers improve durability.
360° Rotating Hooks with Safety Latches: Provide secure load handling and flexible positioning.
Optional Upgrades
– Overload protection device (from 500 kg and above)
– Chain container available on request

Downloads

Data Sheet

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

View our Privacy Policy

Important Safety Information:

Lifting equipment must be selected, installed, inspected, and used in accordance with relevant legislation, including LOLER and PUWER where applicable. Regular inspection by a competent person is required.

Frequently Asked Questions

What makes the VSIII different from other hand chain hoists?

The VSIII features precision-machined guide rollers, high-quality bearings, and an improved chain guide system, resulting in exceptionally smooth operation and reduced manual effort. Its extremely low headroom design also allows better space utilization compared to standard hoists.

Is the VSIII suitable for outdoor use?

Yes. The hoist uses a fully enclosed stamped steel housing and zinc-plated components, which provide strong protection against dirt, moisture, and corrosion, making it suitable for both indoor and outdoor applications.

Can I add overload protection to the hoist?

Yes. An overload protection device is available as an optional upgrade for all models starting from 500 kg capacity. Chain containers are also available on request.
