Steerman SX & S Series Heavy Load Moving Skates

Models: SX-10 • SX-20 • SX-30 • S-60
(Capacities: 10–60 tons)

The Steerman SX and S Series are industrial-grade heavy load moving systems engineered for transporting extremely heavy machinery, steel structures, construction components, and oversized loads. Designed as stable three-point or four-point transport systems, these skates provide safe, smooth, and cost-efficient movement of loads up to 60 tons.

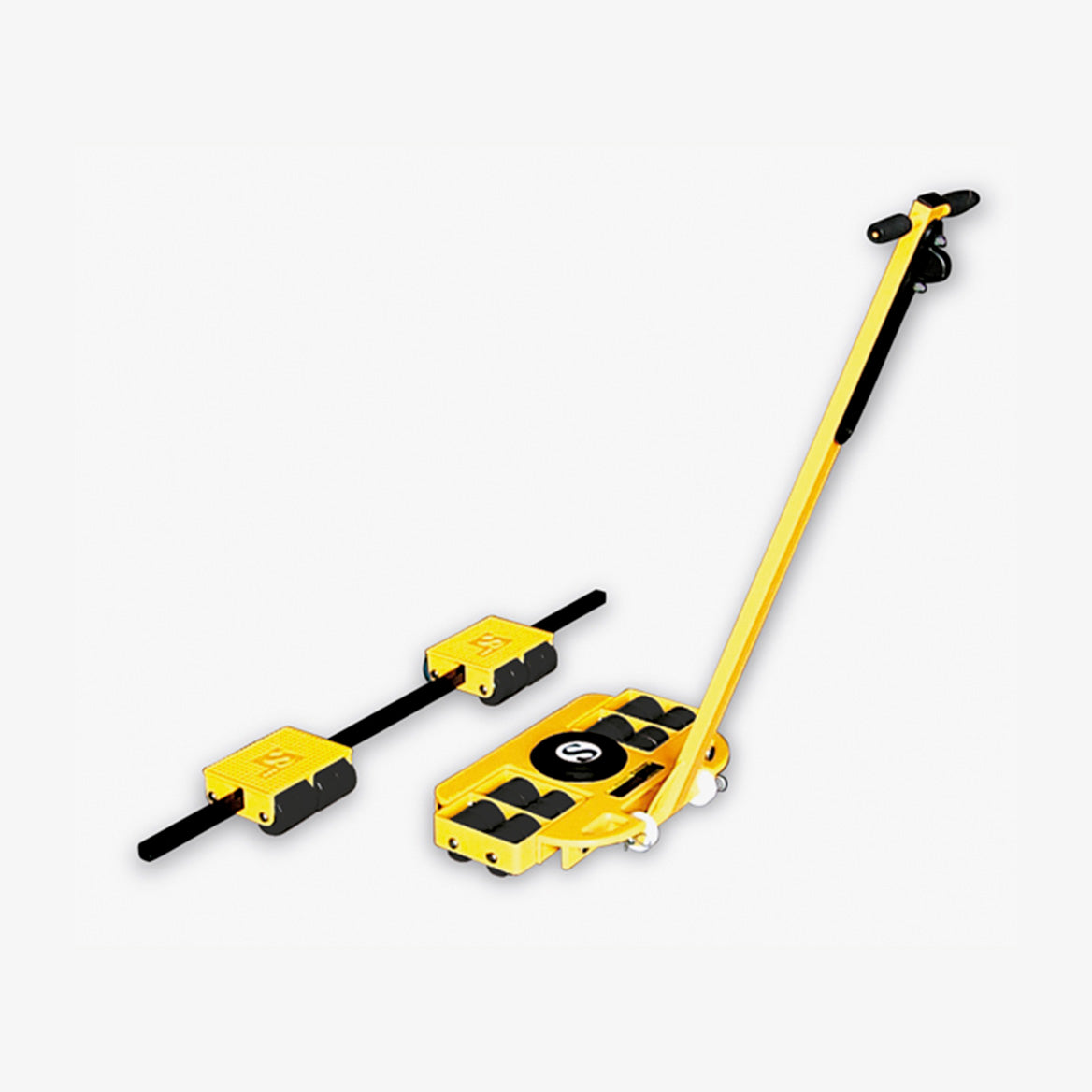

Each system features a steerable front skate with a large-diameter thrust-bearing turntable and rear skates connected with a tie rod for perfectly aligned travel. Built from ductile graphite iron with corrosion-resistant components and abrasion-resistant rollers, the SX and S skates ensure long-term durability in demanding industrial environments.

Available Models:

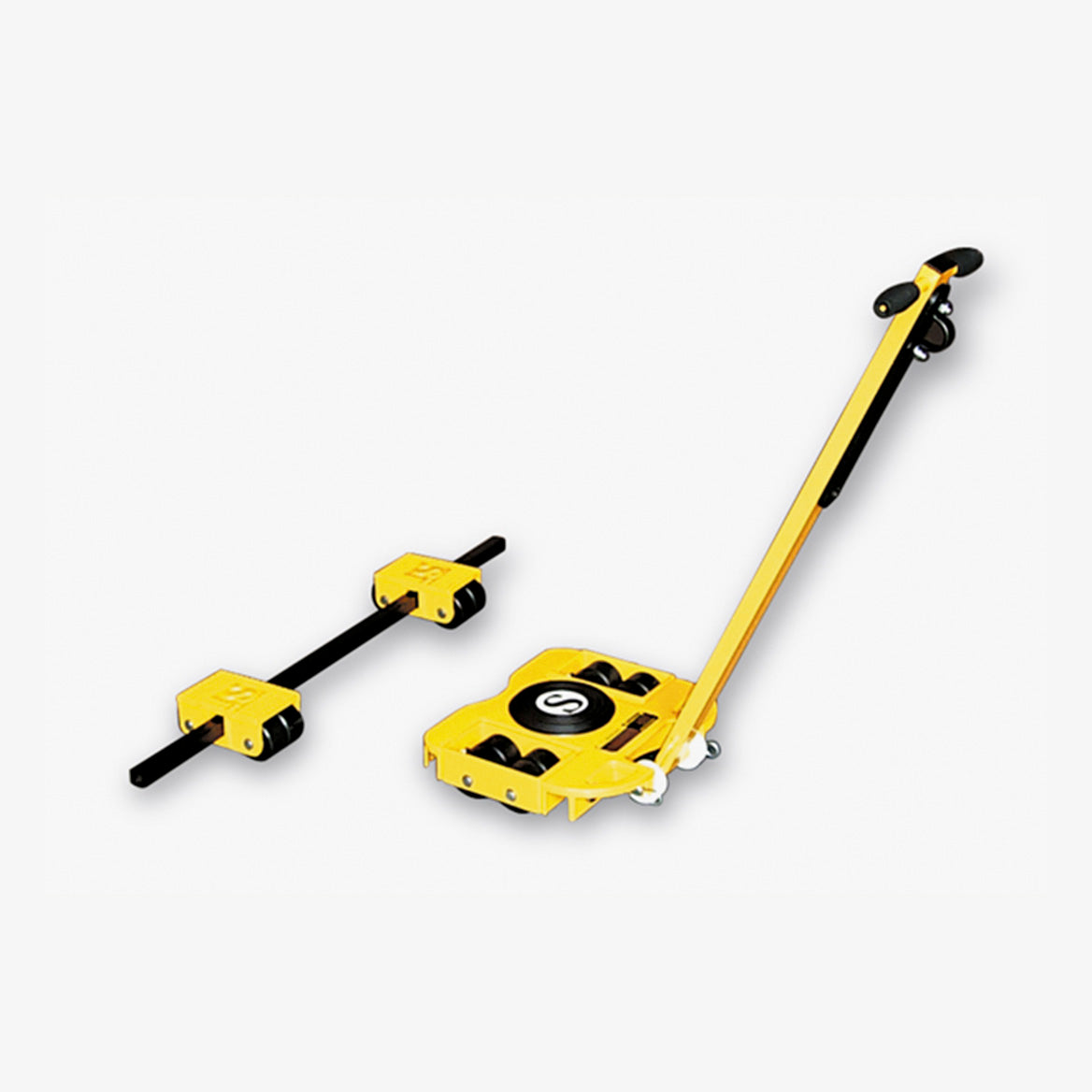

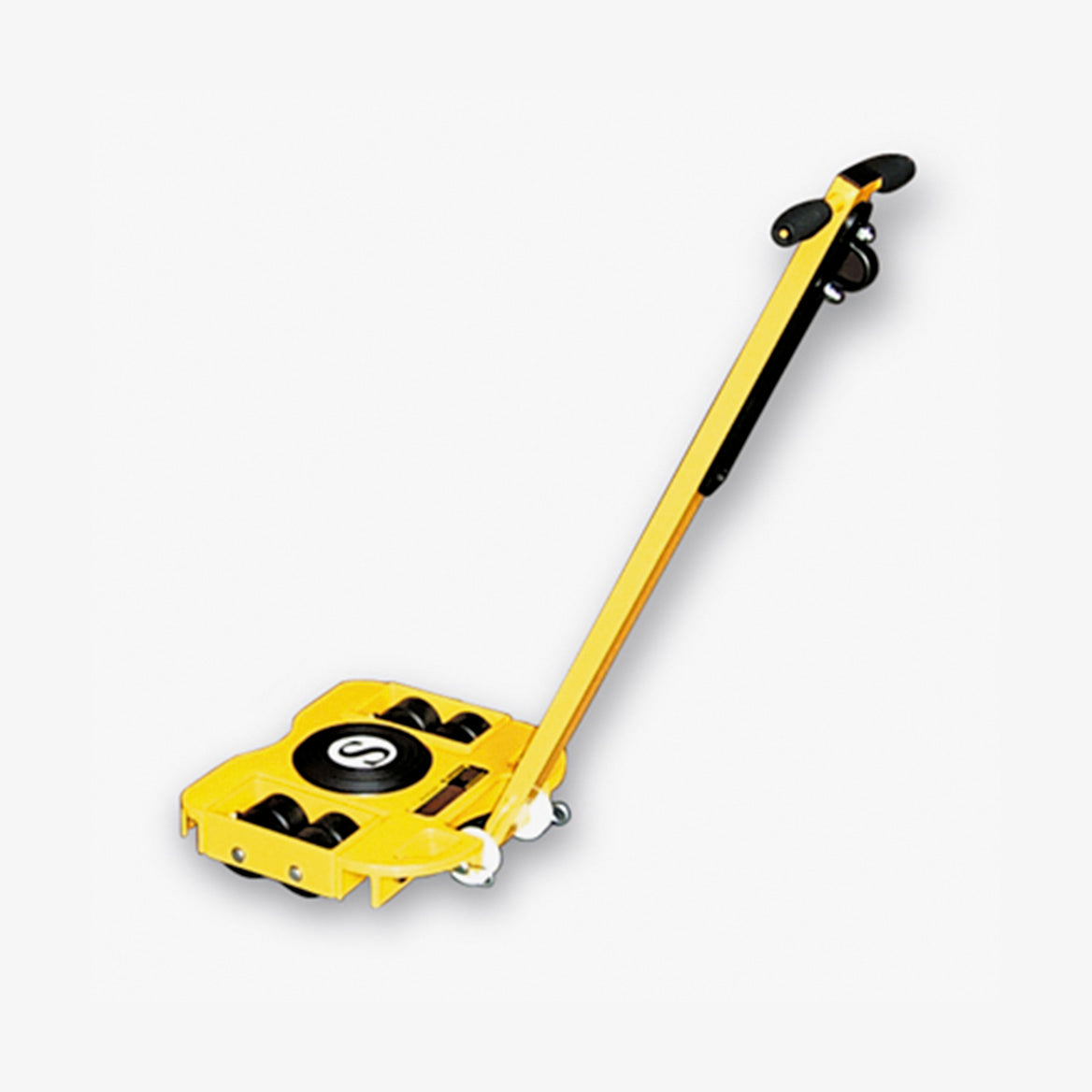

SX-10 Steerman Skates

• Capacity: 10 tonne
• Overall Height: 102 mm
• Number of Rollers: 16
• Roller Diameter: 82 mm
• Roller Colour: Black
• Weight: 54 kg

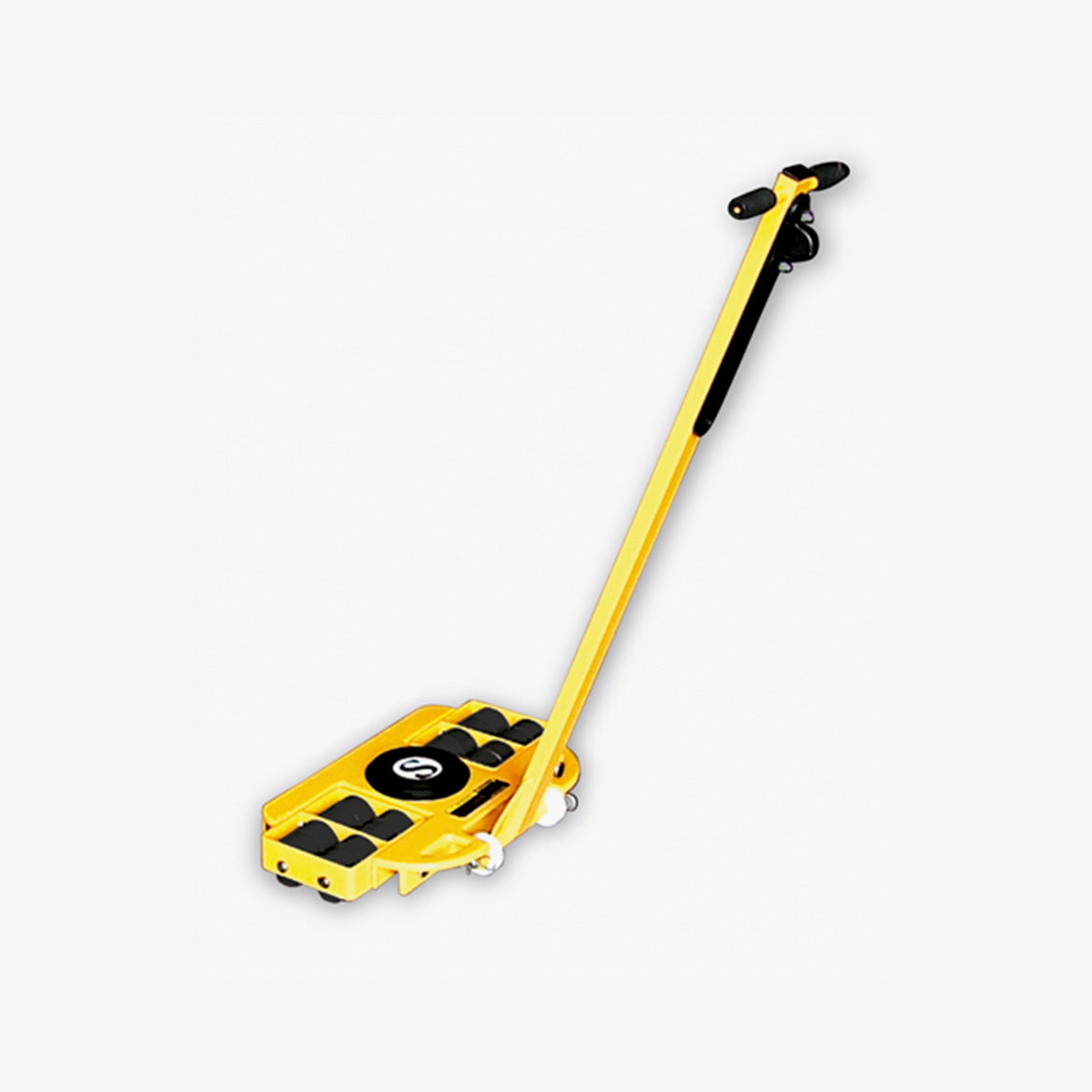

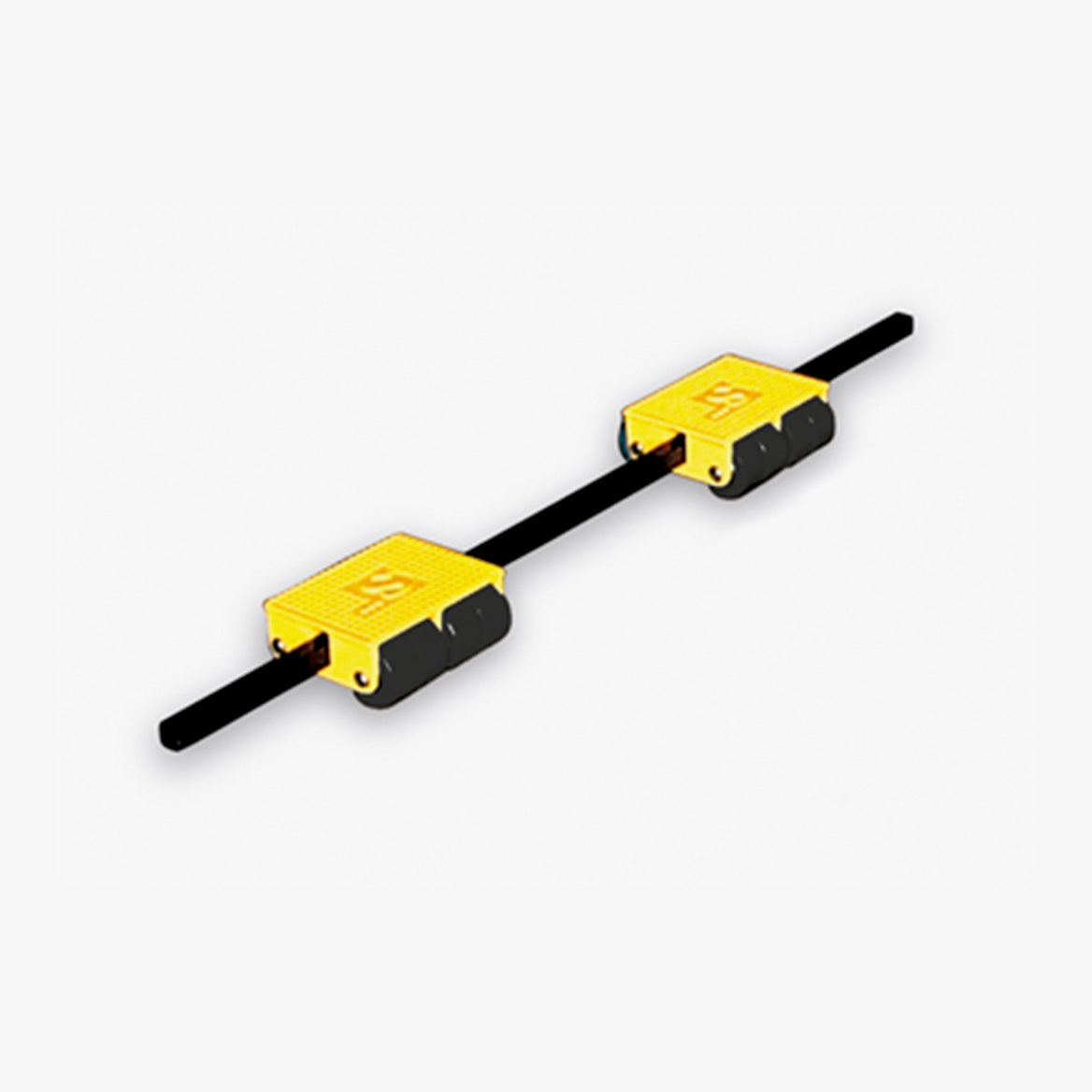

SX-20 Steerman Skates

• Capacity: 20 tonne
• Overall Height: 102 mm
• Number of Rollers: 32
• Roller Diameter: 82 mm
• Roller Colour: Black
• Weight: 76 kg

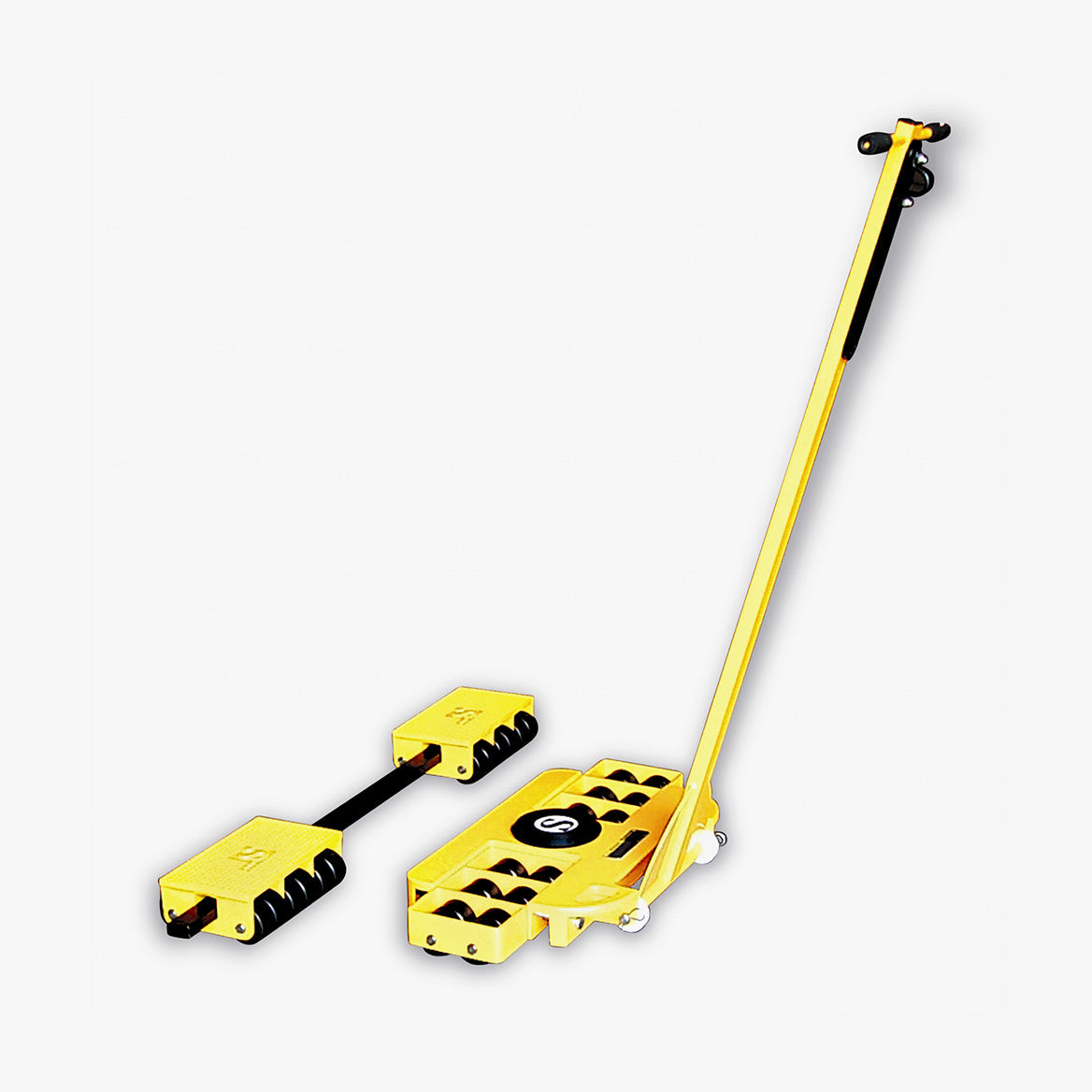

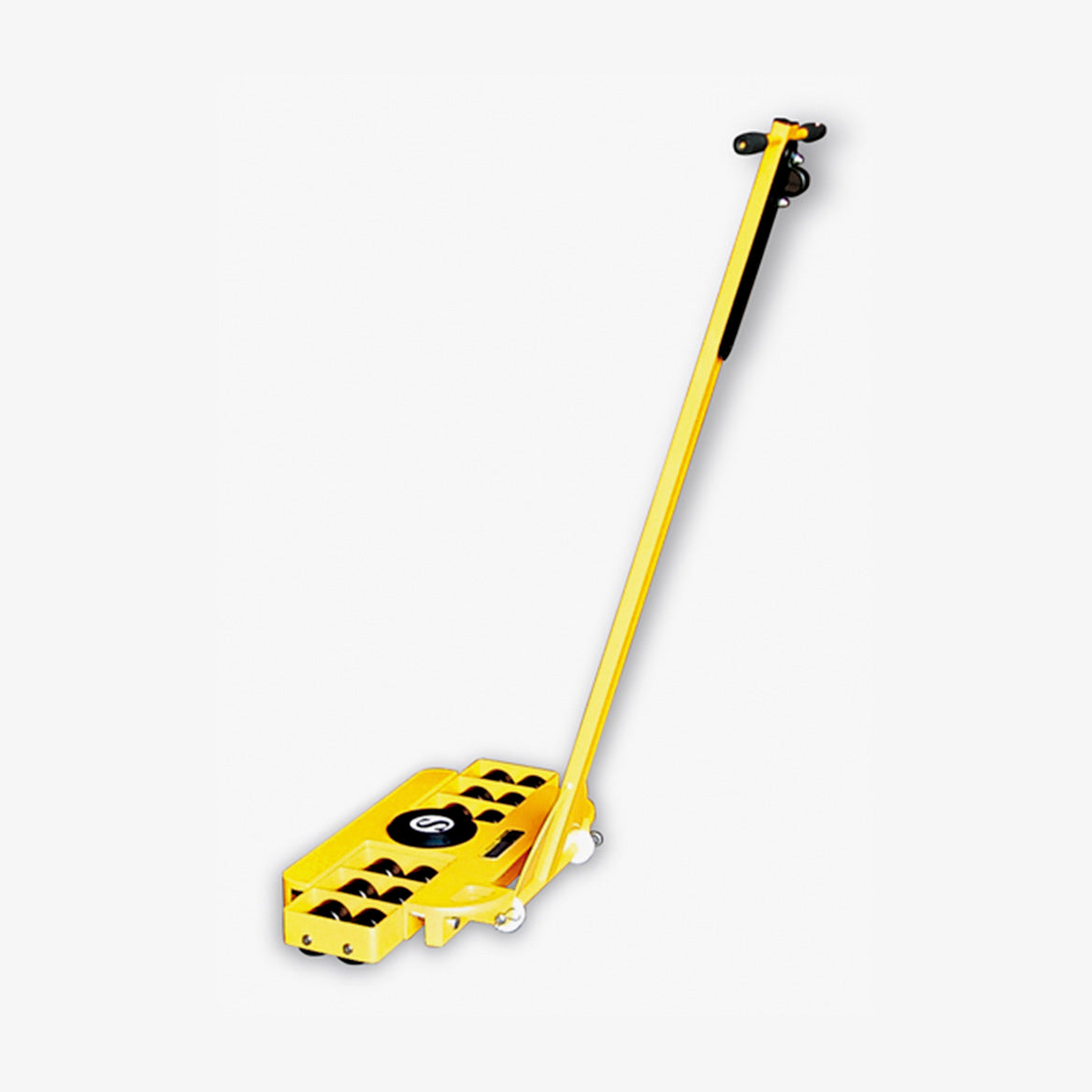

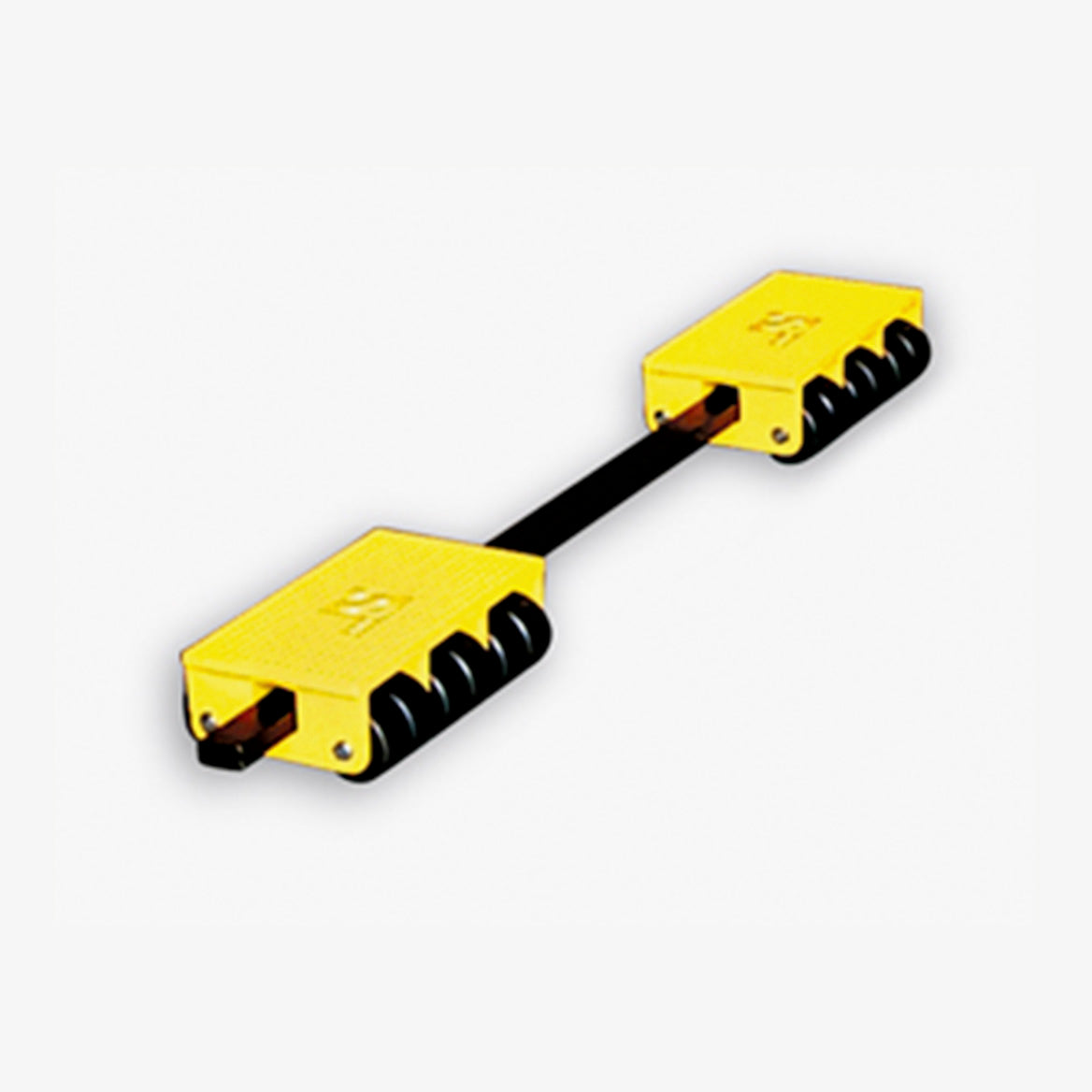

SX-30 Steerman Skates

• Capacity: 30 tonne
• Overall Height: 110 mm
• Number of Rollers: 48
• Roller Diameter: 82 mm
• Roller Colour: Black
• Weight: 136 kg

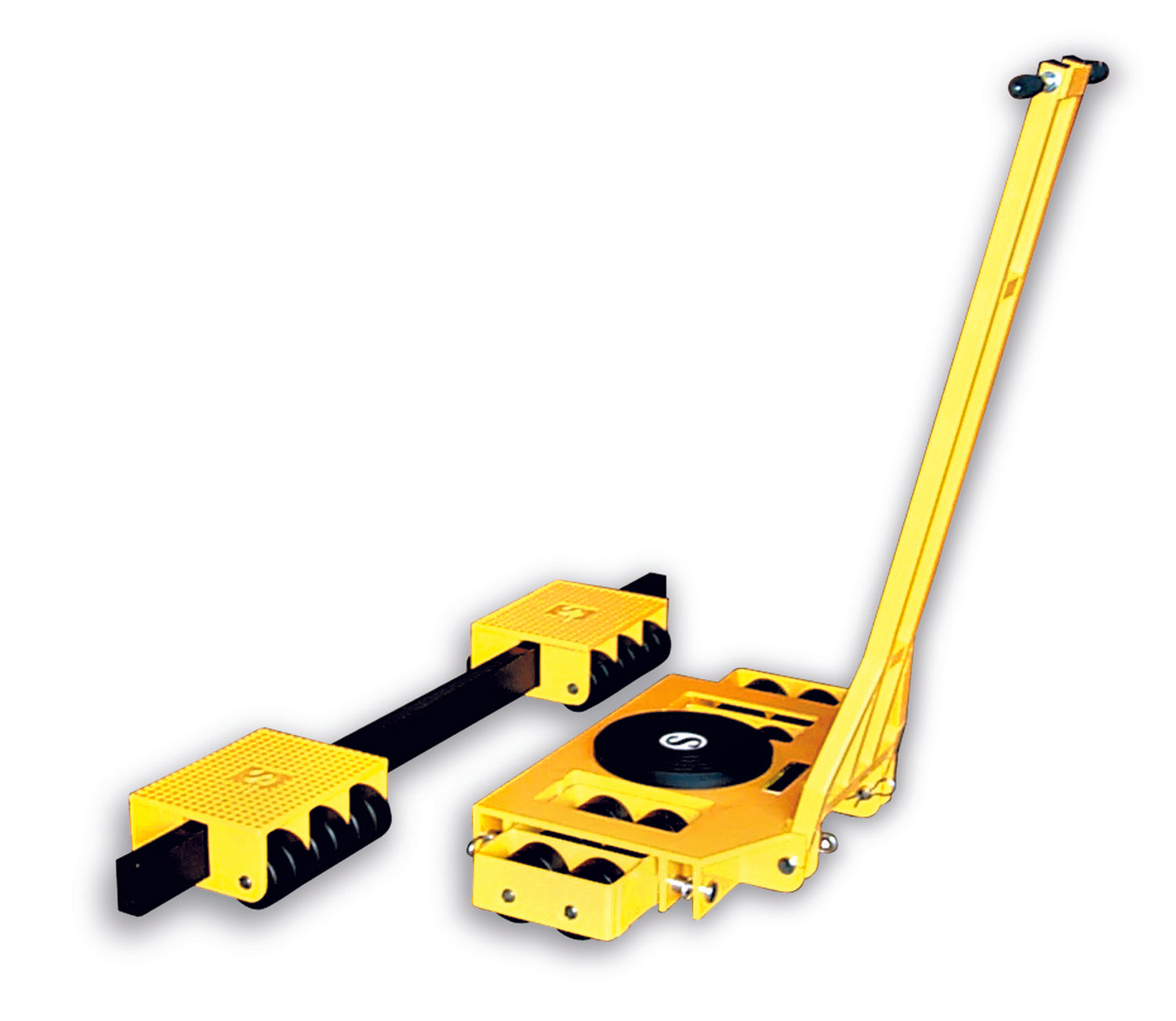

S-60 Steerman Skates

• Capacity: 60 tonne
• Overall Height: 170 mm
• Number of Rollers: 48
• Roller Diameter: 115 mm
• Roller Colour: Black
• Weight: 302 kg

Why You Should Buy

The Steerman SX & S Series skates offer one of the most reliable and professional heavy-load moving solutions available. Their extremely low rolling resistance, twin-roller design, and universal joint suspension ensure stable and controlled transportation—even with very heavy or irregularly balanced loads. These systems are engineered for industrial rigging, machine installation, plant relocation, fabrication yards, shipbuilding, and construction. With rugged construction, lifetime-lubricated bearings, and high chemical resistance, they deliver many years of dependable service with almost no maintenance required.
